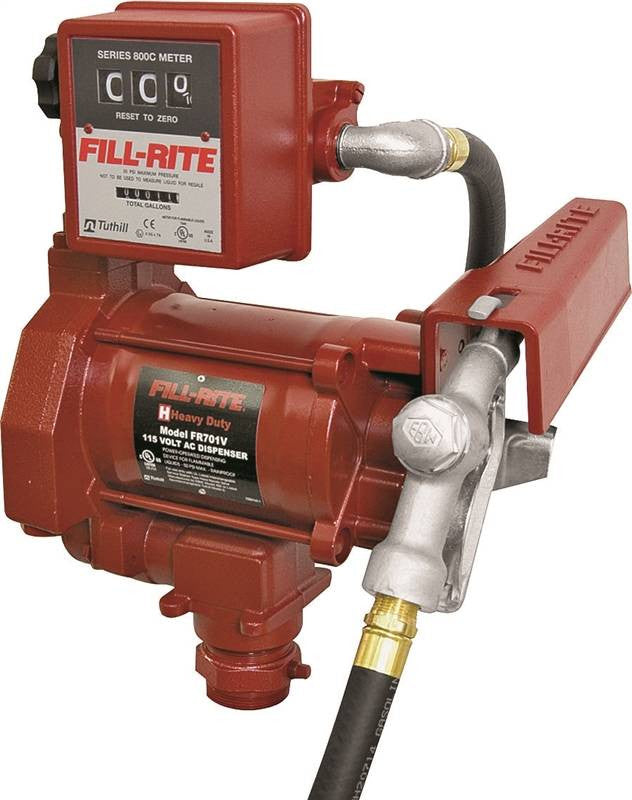

115v Ac Hd Fuel Pump & Meter
Rugged, positive displacement, direct drive pump compatible with diesel, gasoline, kerosene, mineral spirits, heptane, and hexane. Diesel fuel maximum recommended pumped fluid viscosity. Offers heavy-duty switch and built-in check and bypass valves. Ball bearing construction; no greasing or oiling required. Thermal overload protector. Pump security-equipped for padlocking. Furnished with tank adapter for skid tank mounting, pedestals for island installations sold separately. Able to direct mount to above ground tank. Complete with UL Listed 3/4" x 12' long hose, manual nozzle, and 807C flow meter installed. 150 to -15 degrees Fahrenheit max to min ambient operating temp. 12" of mercury min dry vac, 10' min gas/15' min diesel suction lift. 1" female NPT on suction pipe/2" male NPT on bung inlet, 3/4" NPT outlet. Full 1/3 HP 115 volt AC/60Hz explosion-proof motor. 5.5 amp, 1725 RPM. Delivers up to 15 GPM. 14" width x 11" height x 14" depth. CSA and cUL/UL Listed.
- FUEL TRANSFER PUMPS
- Max GPM Flow Rate=15
- FILL-RITE
- INCLUDES METER
- ROTARY VANE - HEAVY-DUTY
- AC-POWERED - 700 SERIES
