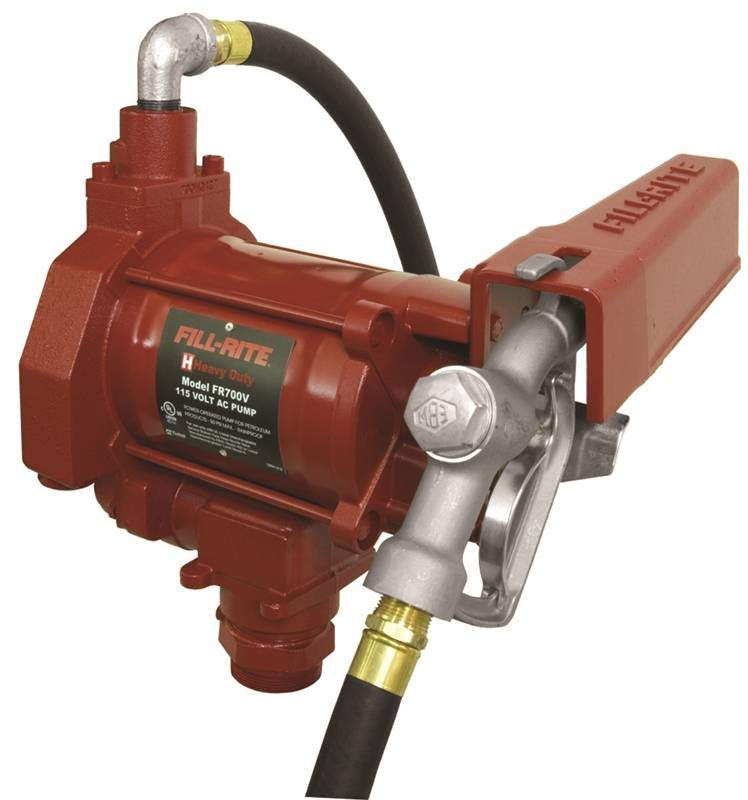

115v Rotary Vane Fluid Pump
Rugged positive displacement direct drive pump, compatible with diesel, gasoline, kerosene, mineral spirits, heptane, and hexane. Diesel fuel max recommended pumped fluid viscosity. Offers heavy-duty switch and built-in check, bypass, and pressure-relief valves. Ball bearing construction; no greasing or oiling required. Thermal overload protector. Pump security-equipped for padlocking. Furnished with tank adapter for skid tank mounting, pedestals for island installations sold separately. Able to direct mount to above ground tank. Complete with UL Listed 3/4" x 12' long hose and manual nozzle. 150 to -15 degrees Fahrenheit max to min ambient operating temp. 12" of mercury min dry vac, 10' min gas/15' min diesel suction lift. 1" female NPT onsuction pipe/2" male NPT on bung inlet, 3/4" NPT outlet. Full 1/3-HP 115-volt AC/60Hz explosion-proof motor. 5.5-amp, 1725 RPM. Delivers up to 20 GPM. 14" width x 11" height x 12" depth. CSA and cUL/UL Listed.
- FUEL TRANSFER PUMPS
- Max PSI Outlet=20
- Max GPM Flow Rate=20
- FILL-RITE
- ROTARY VANE - HEAVY-DUTY
- AC-POWERED - 700 SERIES
