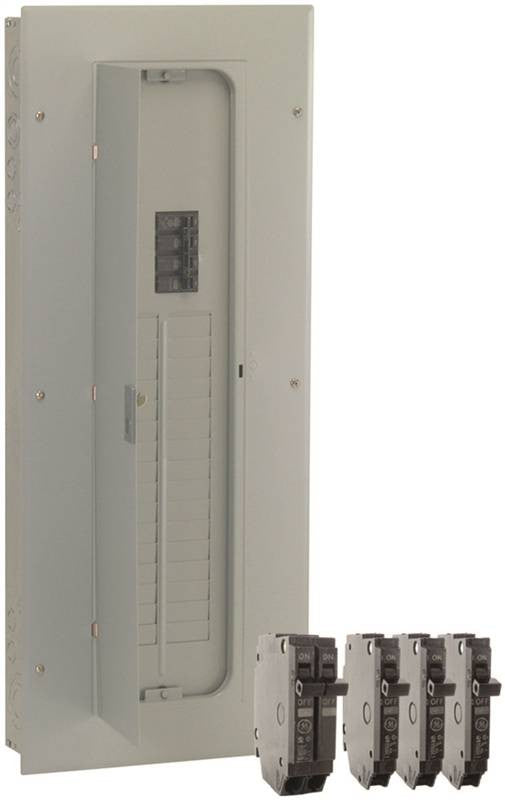

Load Cntr 200a 20sp 32c Indoor

Load Cntr 200a 20sp 32c Indoor

$125.78

Value kit, indoor. Includes a sturdy highly-conductive tin-plated copper buss bar and a rust-resistant galvanized box. Indoor NEMA 1 enclosure with combination surface/flush front. Factory-installed main lug, full-length neutral bars, top or bottom feed and self-adjusting, dead-front cover. One-piece interior removes and re-installs easily. Single-phase, 3-wire, 120/240-volt and 22K AIC rating. All holes are rated for 14-4 wire and 100 percent rated split neutrals on each side. Accepts Q-Line THQL standard, GFCI and AFCI circuit breakers, including GE's exclusive 1/2" THQPs. UL Listed and ANSI Certified. 16" height x 14" width x 3.375" depth, 16.79 lb.
  • MAIN LUG LOAD CENTER PACKS
  • 33.188" x 14" x 3.75" - 34Lb
  • No Spaces/ Circuits=32/40
  • Amp-Volt Rating=200-120/240
  • POWERMARK GOLD
  • 3-20AMP 1-POLE, 1-30AMP 2-POLE 1/2" BREAKERS
  • INDOOR NEMA 1
  • TOP OR BOTTOM FEED
