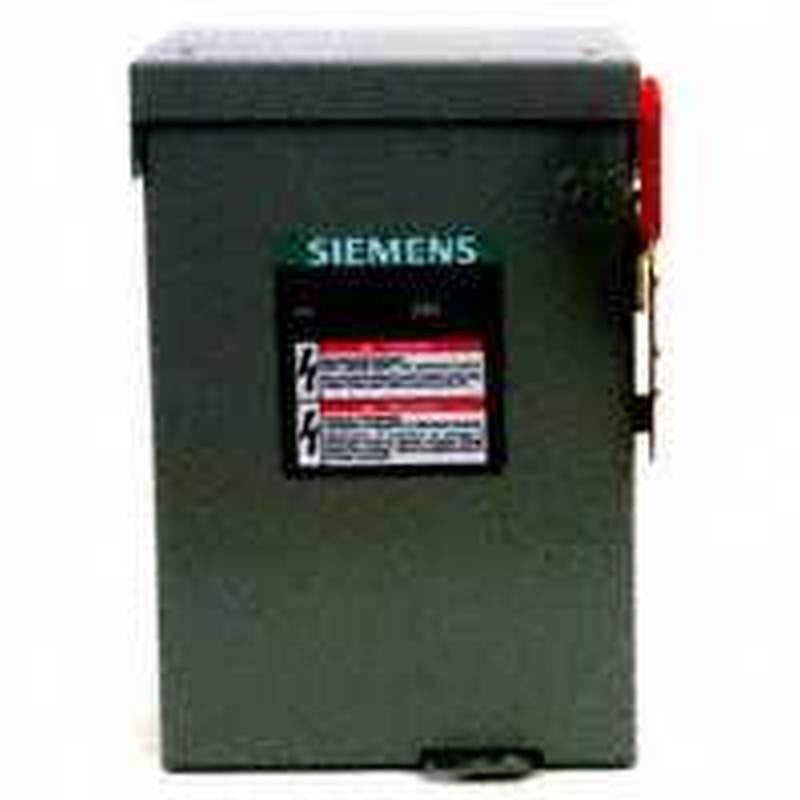

Switch Safety Outdr 2p 3w 60a
Single phase, 2 pole, 3 wire, 240 volt, 10,000 AIC maximum, rated 10 HP maximum. Compact size, quick-make, quick-break mechanism, galvanized steel enclosure. Bottom cable entry and exit only, no hub provision supplied. Padlocking provisions to lock cover or lock in off position. Lugs suitable for copper or aluminum. Silver plated copper conductors. GSGK60 equipment ground kit sold separately. Number 14-3 AWG line and load wire range. 5-9/16" x 8-1/4" x 3-1/8". UL Listed file No.E4776, NEMA Type GD, meets federal specifications WS865C.
- SAFETY SWITCHES
- Amp Rating=60
- OUTDOOR - NEMA 3R
- NON-FUSIBLE
