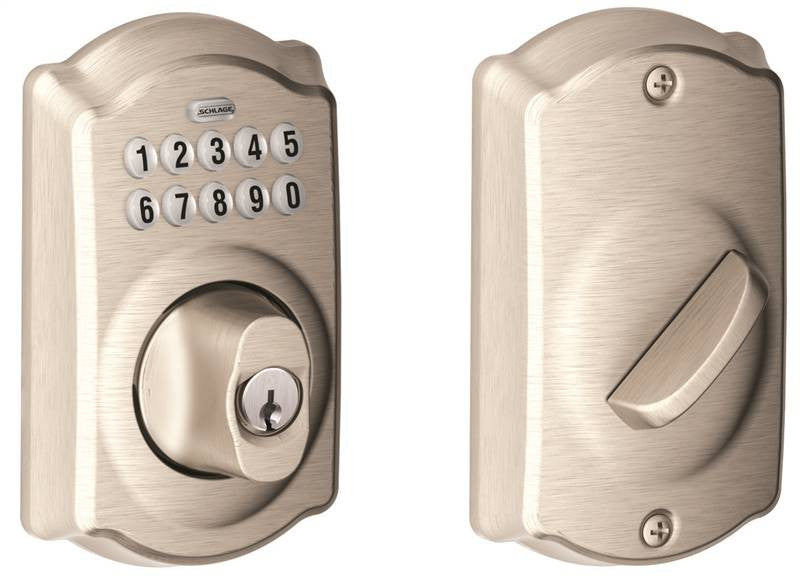

Electronic Deadbolt Stn Nickel
Turn-Lock feature allows the user to lock and leave without a key. Ideal for front, back and side entry doors where deadbolts are required. Grade 2 ANSI/BHMA certified. Commercial grade clutching motor drive. Vandal resistant free-spinning deadbolt turn. Code control; 6-digit programming code required to add and delete user codes. Warning sounds after four incorrect codes entered; keypad disabled for 30 seconds. Mechanical key override. Pre-set with random 6-digit programming code and two random 4-digit user codes. 19 user code capacity; 10,000 user code combinations. Blue LEDs illuminate the keypad on demand. Locks can be re-keyed to match existing locks. 9-volt alkaline battery included. Fits most standard door preps. Just a screwdriver needed for installation on pre-prepped doors. LATCH: 1" x 2-1/4" radius corner faceplate, 1" housing diameter - requires 1" edge bore, 1" throw with Triple-Option square corner, radius corner and circular drive-in faceplates. STRIKES: 1-1/8" x 2-3/4", square corner, no box, latch strike. BACKSET: adjustable backset, fits 2-3/8" to 2-3/4" backsets. CYLINDER: 5-pin solid brass, keyed 5-pin, C keyway, keyed different (KD). DOOR THICKNESS: 1-3/8" to 1-3/4". KEYS: nickel silver cut keys, 5-pin, C-section. Minimum 5-1/2" center-to-center distance between cross bore holes. All-metal chassis and escutcheons. Silicone rubber, wear-resistant buttons.
- KEYPAD DEADBOLTS
- Keying=KD
- Finish=Satin Nickel
- CAMELOT
- VISUAL PACK
- SINGLE CYLINDER
- WITH TURN-LOCK
