Pump Jet Deep Well 1-2hp

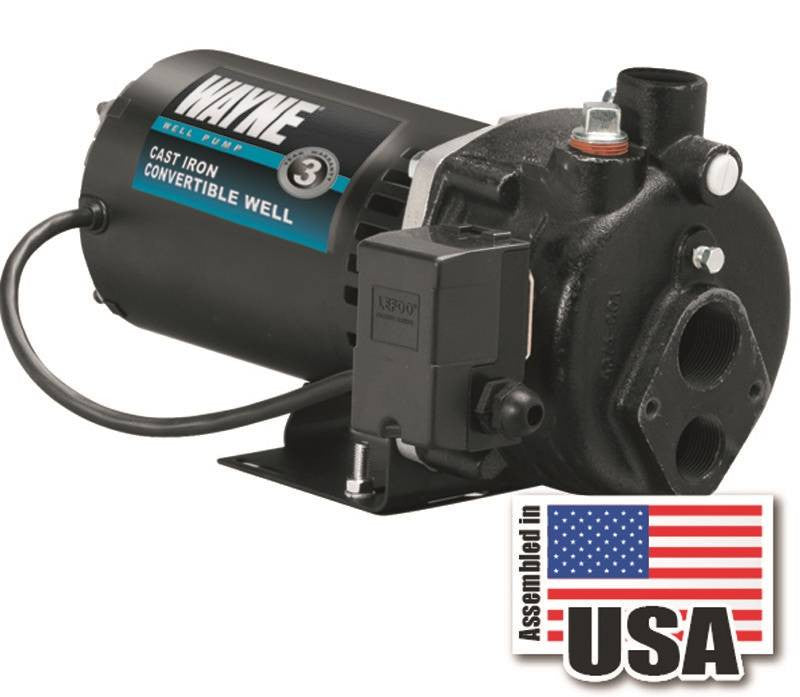

1/2 HP and 3/4 HP cast iron convertible jet well pump. Assembled in the US with foreign and domestic parts. 3/4 in. NPT discharge with 1 1/4 in. NPT suction and 1 in. drive. Dual voltage (120V/240V) high efficiency square flange motor (factory set for 240V). Pressure switch is pre-set at 30-50 PSI for automatic operation. Max flow rate of 408 GPH at 0 ft. (50 PSI/CWS50) and 462 GPH at 0 ft. (50 PSI/CWS75). Durable cast iron volute with dedicated priming port for volute filling. For wells 0 ft. - 90 ft. in depth. Jet assembly required (sold separately).

• JET PUMPS
• Factory Wired For 240 V, 3450 RPM - 348 gph at 5'
• Voltage=120
• HP=1/2
• CAPACITOR START - OVERLOAD PROTECTED
• SQUARE FLANGE
