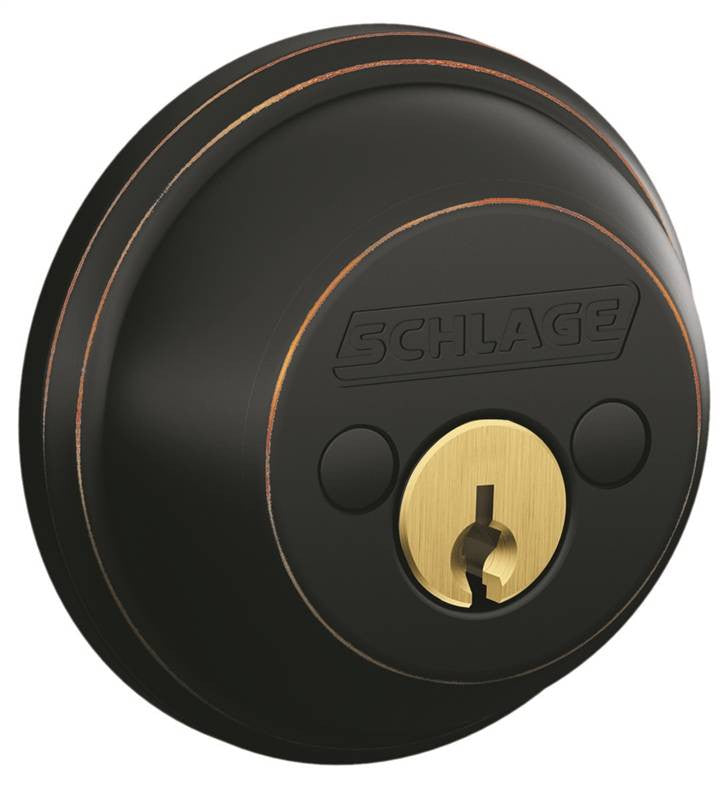

Deadbolt Double Cyl Aged Brz
For residential single and multi-family entrance doors. Deadbolt thrown or retracted by key from either side; bolt automatically deadlocks when fully thrown. 7/8'' wrought brass trim ring reinforced with security inserts. Concealed spin ring rotates to protect against wrenching the cylinder. Solid steel door frame reinforcer with 3'' screws protects against kick-in attacks. Solid, 1 piece design to protect against hammer and crowbar prying attacks. 2-1/2'' steel adapter ring, plated to match, provided for accommodating 2-1/8'' crossbore. DOOR PREP: 1-1/2'' or 2-1/8'' Crossbore; 7/8'' Edge Bore; 1'' x 2-1/4'' Latch Face. DOOR THICKNESS: 1-3/8'' to 1-3/4''. CYLINDER: Solid brass, 5-pin, tumbler C keyway with nickel silver,pick resistant, spool pins and 2 nickel silver, 5-pin, C section keys. FACEPLATE: 1'' x 2-1/4''. STRIKES: 1-1/8'' x 2-3/4'', no lip, with dust box and door frame reinforcer. BOLT: 7/8'' housing and 1'' throw with concealed hardened steel roller to prevent cutting or sawing.ANSI/BHMA: Exceeds A 156.5, 1992 Grade 2 with Grade 1 security features. DUAL OPTION UNIVERSAL: Fits all doors, 2-3/4'' or 2-3/8'' backset; square corner, round corner, or drive-in preps. SECURE KEY feature allows you to re-key the lock without ever removing it from the door.
- DEADBOLTS
- Square Corner - Dual Option Universal Latchbolt
- Keying=K4
- Finish=Aged Bronze
- "MAXIMUM SECURITY''
- BOXED
- HEAVY-DUTY RESIDENTIAL/LIGHT-DUTY COMMERCIAL
- B-SERIES - DOUBLE CYLINDER
- DUAL OPTION UNIVERSAL - LATCHBOLT
